MGP系列模擬調音臺

含12、16、24、32路4個型號。完全采用了雅馬哈錄音棚?別話放。數字音頻錄音播放、REV-X數字效果器、混合型通道等強大的DSP處理能力使其P成為中小型專業調音臺中新的典范。

防偽碼：	無
添加時間：	2017-09-11 17:33:58
推薦度：

描述
系統功能
下載
可用SUK
規格

憑借數十年技術革新的積累，總結生產優質模擬調音臺的經驗，Yamaha開發了新一代專業?A類話放并將它應用到錄音器材中。應用復合晶體管倒相設計，Yamaha全新定義了D-PRE話放厚重、豐富而平滑的音色，這使MGP系列的音質于業內同類產品。由于精通業界受好評的EQ模塊塑造聲音的過程和奧秘，Yamaha專有的 X-pressive EQ技術能夠捕捉真實的模擬聲音特性。

在MGP緊湊的格局內部，Yamaha采用了創造性的全新方法將數字技術融入模擬調音臺；同時還添加了高精度的效果器、iPod/iPhone 兼容能力、新的Stereo Hybrid Channel功能，這一切，造了溫暖、具音樂韻味的優質模擬聲。 MGP代表著Yamaha將數字和模擬技術相結合的高度平衡，全面體現了Yamaha在專業音頻領域的巨大成。

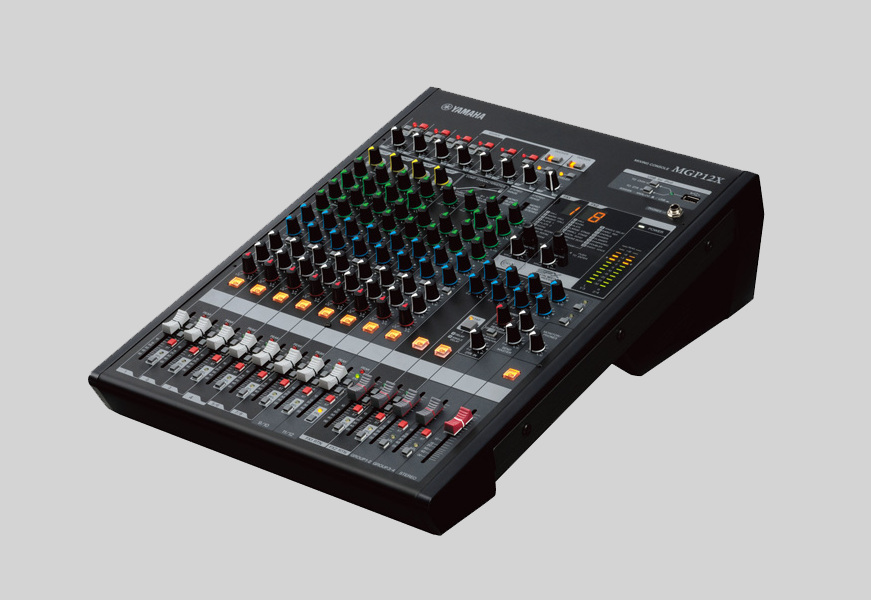

MGP12X---12通道高品質數模結合型調音臺
6路話筒輸入，帶有 48V幻象供電，每通道帶有HPF
12個線路輸入 (4個單聲道和 4個立體聲)
附加的2TR輸入口，用于從模擬設備或iPod/iPhone接收輸出信號
2個AUX發送 + 2個FX發送
4 GROUP母線 + ST母線
錄音棚?分布式A類 “D-PRE”話放，內部配置復合晶體管倒相電路
具音樂韻味的 X-pressive EQ功能源于Yamaha久負盛名的VCM技術
專業單旋鈕壓縮器，帶有LED指示燈
雙重?cái)?shù)字效果處理器:REV-X和Classic SPX
Stereo Hybrid Channels (立體聲混合型通道)可以應用強大的專用DSP
iPod/iPhone的數字式連接，用于音頻播放與DSP控制
MGP Editor可以通過iPod/iPhone詳細控制和操作DSP設置
耐久、緊湊而堅固的粉末噴涂金屬外殼
一體式機柜托架，便于機柜安裝
內部全局供電，在世界各地都可以立即使用

MGP16X---16通道高品質數模結合型調音臺
10路話筒輸入，帶有 48V幻象供電，每通道帶有HPF
16個線路輸入 (8個單聲道和 4個立體聲)
附加的2TR輸輸入，用于從模擬設備或iPod/iPhone接收輸出信號
2個AUX發送 + 2個FX發送
4 GROUP母線 + ST母線
錄音棚?分布式A類 “D-PRE”話放，內部配置復合晶體管倒相電路
具音樂韻味的 X-pressive EQ功能源于Yamaha久負盛名的VCM技術
專業單旋鈕壓縮器，帶有LED指示燈
雙重?cái)?shù)字效果處理器:REV-X和Classic SPX
Stereo Hybrid Channels (立體聲混合型通道)可以應用強大的專用DSP
iPod/iPhone的數字式連接，用于音頻播放與DSP控制
MGP Editor可以通過iPod/iPhone詳細控制和操作DSP設置
耐久、緊湊而堅固的粉末噴涂金屬外殼
一體式機柜托架，便于機柜安裝
內部全局供電，在世界各地都可以立即使用

MGP24X---24通道高品質數模結合型調音臺
16路話筒輸入，帶有 48V幻象供電，每通道帶有HPF
24個線路輸入 (24個單聲道和 4個立體聲)
6個AUX發送 + 2個FX發送
4 GROUP母線 + ST母線
2 Matrix 輸出
1 個單聲道輸出
錄音棚?分布式A類 “D-PRE”話放，內部配置復合晶體管倒相電路
具音樂韻味的 X-pressive EQ功能源于Yamaha久負盛名的VCM技術
專業單旋鈕壓縮器，帶有LED指示燈
雙重?cái)?shù)字效果處理器:REV-X和Classic SPX
Stereo Hybrid Channels (立體聲混合型通道)
iPod/iPhone的數字式連接，用于音頻播放與DSP控制
MGP Editor可以通過iPod/iPhone詳細控制和操作DSP設置
耐久、緊湊而堅固的粉末噴涂金屬外殼
從已連接的 USB 設備中回放或錄音到該 USB 設備
31段 GEQ，具備可選的 9 個 flex 頻段或 14 個固定頻段模式
三段式主壓縮器可以分配到立體聲母線

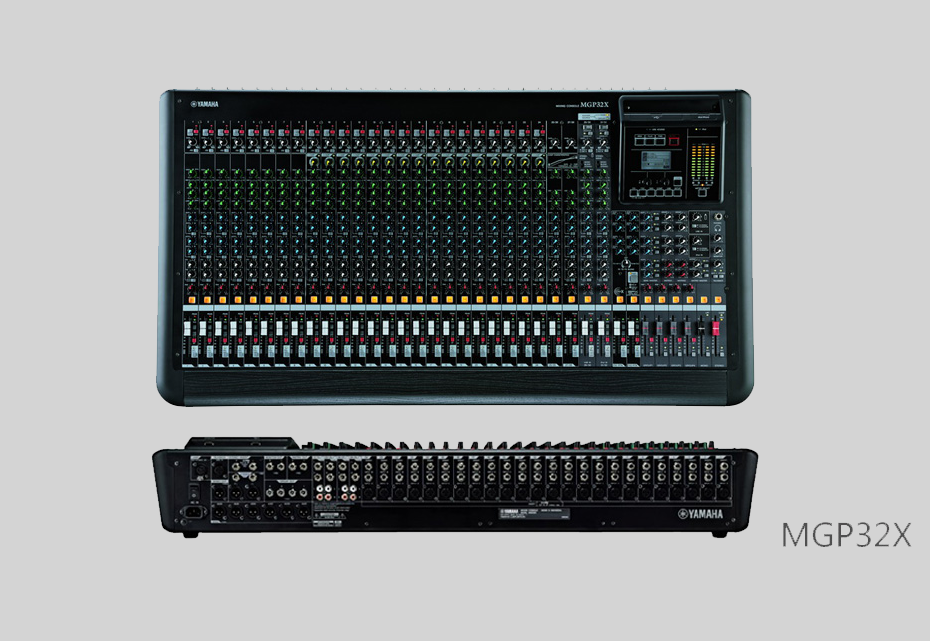

MGP32X---32通道高品質數模結合型調音臺
24路話筒輸入，帶有 48V幻象供電，每通道帶有HPF
32個線路輸入 (24個單聲道和 4個立體聲)
6個AUX發送 + 2個FX發送
4 GROUP母線 + ST母線
2 Matrix 輸出
1 個單聲道輸出
錄音棚?分布式A類 “D-PRE”話放，內部配置復合晶體管倒相電路
具音樂韻味的 X-pressive EQ功能源于Yamaha久負盛名的VCM技術
專業單旋鈕壓縮器，帶有LED指示燈
雙重?cái)?shù)字效果處理器:REV-X和Classic SPX
Stereo Hybrid Channels (立體聲混合型通道)
iPod/iPhone的數字式連接，用于音頻播放與DSP控制
MGP Editor可以通過iPod/iPhone詳細控制和操作DSP設置
耐久、緊湊而堅固的粉末噴涂金屬外殼
從已連接的 USB 設備中回放或錄音到該 USB 設備
31段 GEQ，具備可選的 9 個 flex 頻段或 14 個固定頻段模式
三段式主壓縮器可以分配到立體聲母線

MGP系列產品資料

MGP12X	4 單身道 and 4 立體聲）
MGP16X	8 單身道 and 4 立體聲
MGP24X	16 單身道 and 4 立體聲
MGP32X	24 單身道 and 4 立體聲

MGP32X / MGP24X Specifications
Outline MGP32X MGP24X
Mixing capability Mixing channels 32 Line Inputs (24 mono and 4 stereo) 24 Line Inputs (16 mono and 4 stereo)
GROUP 4 GROUP Buses + ST Bus 4 GROUP Buses + ST Bus
AUX 6 AUX Sends + 2 FX Sends 6 AUX Sends + 2 FX Sends
MATRIX 1 Matrix out 1 Matrix out
On-board processors FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control) FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
I/O Mic inputs MIC: 24 (INPUTS HPF: 100Hz 12dB/oct) MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power 48V phantom power per channel 48V phantom power per channel
Line inputs LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
Digital I/O USB Device, iPod / iPhone USB Device, iPod / iPhone
General specifications MGP32X MGP24X
Total harmonic distortion 0.02% (20Hz-20kHz@ +14dBu) 0.02% (20Hz-20kHz@ +14dBu)
Frequency response +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise level Equivalent input noise -128 dBu Equivalent Input Noise -128 dBu Equivalent Input Noise
Residual output noise -94 dBu Residual Output Noise -94 dBu Residual Output Noise
Crosstalk -74dB @ 1kHz -74dB @ 1kHz
Power requirements 100-240V 50Hz/60Hz 100-240V 50Hz/60Hz
Power consumption 86W max 86W max
Dimensions W 1,027mm (40.4") 819mm (32.2")
H 169mm (6.7") 169mm (6.7")
D 565mm (22.2") 565mm (22.2")
Net weight 19kg (41.9lb) 15.5kg (34.2lb)
MGP16X / MGP12X Specifications
Outline MGP16X MGP12X
Mixing capability Mixing channels 16 Line Inputs (8 mono and 4 stereo) 12 Line Inputs (4 mono and 4 stereo)
GROUP 4 GROUP Buses + ST Bus 4 GROUP Buses + ST Bus
AUX 2 AUX Sends + 2 FX Sends 2 AUX Sends + 2 FX Sends
Input channel functions Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving Compressor CH1-4,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4,9-12)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving
On-board processors FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control) FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
I/O Mic inputs MIC: 10 MIC:6 (100Hz 12dB/oct)
Phantom power 48V phantom power per channel 48V phantom power per channel
Line inputs LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1stereo, 2TR IN: 1 stereo
Digital I/O USB Audio USB IN: iPod, iPhone exclusive USB Audio USB IN: iPod, iPhone exclusive
General specifications MGP16X MGP12X
Total harmonic distortion 0.02% (20Hz-20kHz@ +14dBu) 0.02% (20Hz-20kHz@ +14dBu)
Frequency response +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise level Equivalent input noise -128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) -128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk -74dB @ 1kHz -74dB @ 1kHz
Power requirements 100-240V 50Hz/60Hz 100-240V 50Hz/60Hz
Power consumption 55W max 45W max
Dimensions W 447mm 348mm
H 143mm 143mm
D 495mm 495mm
Net weight 9.0kg 7.5kg
Analog input specifications
Input terminal Actual source
impedance For use with
nominal Input level Connector
PAD GAIN Sensitivity^1 Nominal Max.
before clip
MONO CH INPUT
MGP32X: 1–24
MGP24X: 1–16 0 -60dB 3kΩ 50-600Ω
Mics -80 dBu
(0.078 mV) -60 dBu
(0.775 mV) -40 dBu
(7.75 mV) XLR-3-31 type^2
Phone jack^4
-16dB -36 dBu
(12.3 mV) -16 dBu
(123 mV) +4 dBu
(1.23 V)
26dB -34dB 600Ω
Lines -54 dBu
(1.55 mV) -34 dBu
(15.5 mV) -14 dBu
(155 mV) Phone jack^3
+10dB -10 dBu
(245 mV) +10 dBu
(2.45 V) +30 dBu
(24.5 V)
STEREO CH INPUT
MGP32X: 25–32
MGP24X: 17–24 -34dB 10kΩ 600Ω
Lines -54 dBu
(1.55 mV) -34 dBu
(15.5 mV) -14 dBu
(155 mV) Phone jack^4
RCA Pin Jack
+10dB -10 dBu
(245 mV) +10 dBu
(2.45 V) +30 dBu
(24.5 V)
MONO CH INSERT INPUT
MGP32X: 1–24
MGP24X: 1–16 10kΩ 600Ω
Lines -20 dBu
(77.5 mV) 0 dBu
(0.775 V) +20 dBu
(7.75 V) Phone Jack^5
ST CH INSERT INPUT L,R 10kΩ 600Ω
Lines -20 dBu
(77.5 mV) 0 dBu
(0.775 V) +20 dBu
(7.75 V) Phone Jack^5
TALKBACK INPUT 10kΩ 50-600Ω
Mics -66 dBu
(0.389 mV) -50 dBu
(2.45 mV) -30 dBu
(24.5 mV) XLR-3-31 type^6
0 dBu is referenced to 0.775 Vrms. 0 dBV is referenced to 1 Vrms.
1 Sensitivity is the lowest level that will produce an output of +4 dB (1.23 V), or the nominal output level when the unit is set to maximum level. (all faders and level controls are at maximum position.)
2 XLR-3-31 type connectors are balanced .(1=GND, 2=HOT, 3=COLD)
3 Phone Jacks are balanced. (Tip=HOT, Ring=COLD, Sleeve=GND)
4 Phone Jacks are unbalanced.
5 Phone Jacks are unbalanced.(Tip=Out, Ring=In, Sleeve=GND)
6 XLR-3-31 type connectors is unbalanced.
Analog output specifications
Output terminal Actual source
impedance For use with
nominal Output level Connector
Nominal Max. before clip
ST OUT [L,R] 75Ω 600Ω Lines +4 dBu
(1.23 V) +24 dBu
(12.3 V) XLR3-32 type^1
Phone jack^4
MONO OUT 75Ω 600Ω Lines +4 dBu
(1.23 V) +24 dBu
(12.3 V) XLR3-32 type^1
GROUP OUT (1-4) 150Ω 10kΩ Lines +4 dBu
(1.23 V) +20 dBu
(7.75 V) Phone jack^2
AUX SEND (1-6) 75Ω 600Ω Lines +4 dBu
(1.23 V) +24 dBu
(12.3 V) XLR3-32 type^1
MATRIX OUT (1, 2) 150Ω 10kΩ Lines +4 dBu
(1.23 V) +20 dBu
(7.75 V) Phone jack^2
MONO CH INSERT OUT
MGP32X: 1–24
MGP24X: 1–16 75Ω 10kΩ Lines 0 dBu
(0.775 V) +20 dBu
(7.75 V) Phone jack^3
ST CH INSERT OUT [L,R] 75Ω 10kΩ Lines 0 dBu
(0.775 V) +20 dBu
(7.75 V) Phone jack^3
MONITOR OUT [L,R] 150Ω 10kΩ Lines +4 dBu
(1.23 V) +20 dBu
(7.75 V) Phone jack^*2
PHONES OUT 150Ω 40Ω Phones 3mW 75mW ST Phone Jack

Outline	MGP32X	MGP24X
Mixing capability	Mixing channels	32 Line Inputs (24 mono and 4 stereo)	24 Line Inputs (16 mono and 4 stereo)
GROUP	4 GROUP Buses + ST Bus	4 GROUP Buses + ST Bus
AUX	6 AUX Sends + 2 FX Sends	6 AUX Sends + 2 FX Sends
MATRIX	1 Matrix out	1 Matrix out
On-board processors	FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)	FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
I/O	Mic inputs	MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)	MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power	48V phantom power per channel	48V phantom power per channel
Line inputs	LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo	LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
Digital I/O	USB Device, iPod / iPhone	USB Device, iPod / iPhone
General specifications	MGP32X	MGP24X
Total harmonic distortion	0.02% (20Hz-20kHz@ +14dBu)	0.02% (20Hz-20kHz@ +14dBu)
Frequency response	+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz	+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise level	Equivalent input noise	-128 dBu Equivalent Input Noise	-128 dBu Equivalent Input Noise
Residual output noise	-94 dBu Residual Output Noise	-94 dBu Residual Output Noise
Crosstalk	-74dB @ 1kHz	-74dB @ 1kHz
Power requirements	100-240V 50Hz/60Hz	100-240V 50Hz/60Hz
Power consumption	86W max	86W max
Dimensions	W	1,027mm (40.4")	819mm (32.2")
H	169mm (6.7")	169mm (6.7")
D	565mm (22.2")	565mm (22.2")
Net weight	19kg (41.9lb)	15.5kg (34.2lb)

Outline	MGP16X	MGP12X
Mixing capability	Mixing channels	16 Line Inputs (8 mono and 4 stereo)	12 Line Inputs (4 mono and 4 stereo)
GROUP	4 GROUP Buses + ST Bus	4 GROUP Buses + ST Bus
AUX	2 AUX Sends + 2 FX Sends	2 AUX Sends + 2 FX Sends
Input channel functions	Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving	Compressor CH1-4,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4,9-12)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving
On-board processors	FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)	FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
I/O	Mic inputs	MIC: 10	MIC:6 (100Hz 12dB/oct)
Phantom power	48V phantom power per channel	48V phantom power per channel
Line inputs	LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo	LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1stereo, 2TR IN: 1 stereo
Digital I/O	USB Audio USB IN: iPod, iPhone exclusive	USB Audio USB IN: iPod, iPhone exclusive
General specifications	MGP16X	MGP12X
Total harmonic distortion	0.02% (20Hz-20kHz@ +14dBu)	0.02% (20Hz-20kHz@ +14dBu)
Frequency response	+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz	+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise level	Equivalent input noise	-128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)	-128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise	-102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)	-102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk	-74dB @ 1kHz	-74dB @ 1kHz
Power requirements	100-240V 50Hz/60Hz	100-240V 50Hz/60Hz
Power consumption	55W max	45W max
Dimensions	W	447mm	348mm
H	143mm	143mm
D	495mm	495mm
Net weight	9.0kg	7.5kg

Input terminal	Actual source impedance	For use with nominal	Input level	Connector
	PAD	GAIN	Sensitivity^*1	Nominal	Max. before clip
MONO CH INPUT MGP32X: 1–24 MGP24X: 1–16	0	-60dB	3kΩ	50-600Ω Mics	-80 dBu (0.078 mV)	-60 dBu (0.775 mV)	-40 dBu (7.75 mV)	XLR-3-31 type^2 Phone jack^4
-16dB	-36 dBu (12.3 mV)	-16 dBu (123 mV)	+4 dBu (1.23 V)
26dB	-34dB	600Ω Lines	-54 dBu (1.55 mV)	-34 dBu (15.5 mV)	-14 dBu (155 mV)	Phone jack^*3
+10dB	-10 dBu (245 mV)	+10 dBu (2.45 V)	+30 dBu (24.5 V)
STEREO CH INPUT MGP32X: 25–32 MGP24X: 17–24	-34dB	10kΩ	600Ω Lines	-54 dBu (1.55 mV)	-34 dBu (15.5 mV)	-14 dBu (155 mV)	Phone jack^*4 RCA Pin Jack
+10dB	-10 dBu (245 mV)	+10 dBu (2.45 V)	+30 dBu (24.5 V)
MONO CH INSERT INPUT MGP32X: 1–24 MGP24X: 1–16	10kΩ	600Ω Lines	-20 dBu (77.5 mV)	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone Jack^*5
ST CH INSERT INPUT L,R	10kΩ	600Ω Lines	-20 dBu (77.5 mV)	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone Jack^*5
TALKBACK INPUT	10kΩ	50-600Ω Mics	-66 dBu (0.389 mV)	-50 dBu (2.45 mV)	-30 dBu (24.5 mV)	XLR-3-31 type^*6

Output terminal	Actual source impedance	For use with nominal	Output level	Connector
Nominal	Max. before clip
ST OUT [L,R]	75Ω	600Ω Lines	+4 dBu (1.23 V)	+24 dBu (12.3 V)	XLR3-32 type^1 Phone jack^4
MONO OUT	75Ω	600Ω Lines	+4 dBu (1.23 V)	+24 dBu (12.3 V)	XLR3-32 type^*1
GROUP OUT (1-4)	150Ω	10kΩ Lines	+4 dBu (1.23 V)	+20 dBu (7.75 V)	Phone jack^*2
AUX SEND (1-6)	75Ω	600Ω Lines	+4 dBu (1.23 V)	+24 dBu (12.3 V)	XLR3-32 type^*1
MATRIX OUT (1, 2)	150Ω	10kΩ Lines	+4 dBu (1.23 V)	+20 dBu (7.75 V)	Phone jack^*2
MONO CH INSERT OUT MGP32X: 1–24 MGP24X: 1–16	75Ω	10kΩ Lines	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone jack^*3
ST CH INSERT OUT [L,R]	75Ω	10kΩ Lines	0 dBu (0.775 V)	+20 dBu (7.75 V)	Phone jack^*3
MONITOR OUT [L,R]	150Ω	10kΩ Lines	+4 dBu (1.23 V)	+20 dBu (7.75 V)	Phone jack^*2
PHONES OUT	150Ω	40Ω Phones	3mW	75mW	ST Phone Jack

標簽： MGP系列模擬調音臺 正品代理杭州雅創音響工程有限公司 Hang Zhou ACTRON Audio EngineeringCo. Ltd SHURE話筒 LAB GRUPPEN JBL Sennheiser ALLEN&HEATH MIDAS調音臺 SOUNDCRAFT DENON CROWN功放 DBX周邊

上一篇MG系列

下一篇無

聯系電話： 0571-88380719
傳真： 0571-85873600
詳細地址： 杭州市拱墅區萍水街御峰大廈406-408室

客服一 2368971987
客服二 357331319
客服三 752002004
阿里巴巴杭州雅創音響工程有限公司

咨詢時間 8:30 - 18:00 周一至周五

亚洲一级av无码毛片久久_日本棈品视频一区_爽爽婬人综合网网站春色_国产一区二区毛片_国产欧美亚洲精品第一页亚洲欧美

MGP系列模擬調音臺

MGP16X / MGP12X Specifications

Analog input specifications

Analog output specifications

產品欄PRODUCT

ASB4128

AC115S

QLX-D? 數字無線系統
